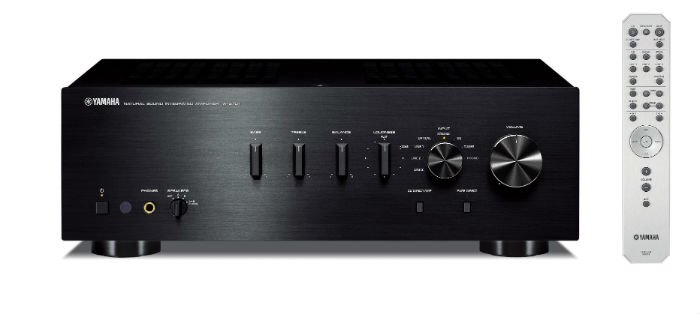

Yamaha AS701B Integrated Amplifier in Black
Yamaha AS701B Integrated Amplifier in Black
Couldn't load pickup availability
Yamaha AS701B Integrated Amplifier in Black
Extremely pure sound quality and outstanding drive power. An integrated amplifier with the advantage of digital input.
- ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
- - I/O (input to output) Direct Symmetrical Design
- - ART (Anti-Resolution and Tough) Base
- - Custom-made power transformer / 12,000uF block capacitors / Aluminum-extruded heat sinks
- 160W x 2 (max), 100W x 2 (RMS) high power output
- CD Direct Amplification and Pure Direct
- Continuous Variable Loudness Control
- Gold-plated speaker terminals and RCA terminals
- Digital audio inputs for TV or Blu-ray Player
- Simple yet sophisticated design (aluminium front panel and knobs)
- Auto Power Standby
SPECIFICATION
| Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) | 100 W + 100 W (0.019% THD) | |
|---|---|---|
| Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) | 160 W + 160 W | |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 140/170/220/290 W | |
| Damping Factor | 240 | |
| Frequency Response | 10 Hz-100 kHz +/-1.0 dB | |
| Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) | 0.019% (50 W/8 ohms) | |
| Signal-to-Noise Ratio (CD) | 99dB (input shorted, 200 mV) | |
| Audio In / Out | 8 / 2 | |
| Digital Input | Yes (optical / coaxial) | |
| Subwoofer Out | Yes | |
| DC out | Yes | |
| Pure Direct | Yes | |
| ToP-ART | Yes | |
| Switchable CD Direct Amplification | Yes | |
| Standby Power Consumption | 0.5W | |
| Power Management (Auto Power Standby) | Yes | |
| Dimensions (W x H x D) | 435 x 151 x 387 mm; 17-1/8” x 6” x 15-1/4” | |
| Weight | 11.2 kg; 24.7 lbs. | |
Yamaha AS701B Integrated Amplifier in Black, yamaha, as701b, as-701, as701, two channel amp, 701
