Teac TN-4D-SE Direct Drive 2-Speed Analog Turntable Walnut
Teac TN-4D-SE Direct Drive 2-Speed Analog Turntable Walnut
Couldn't load pickup availability

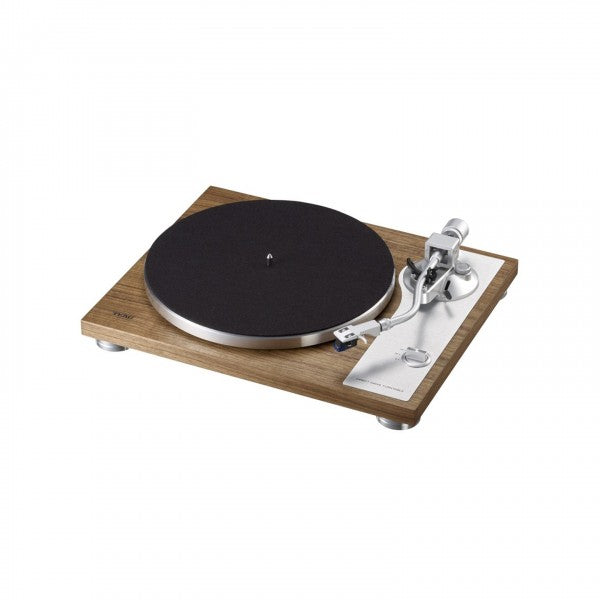

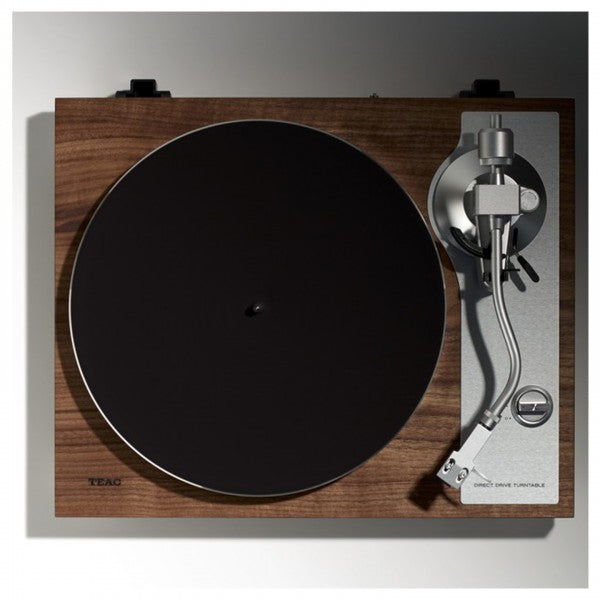

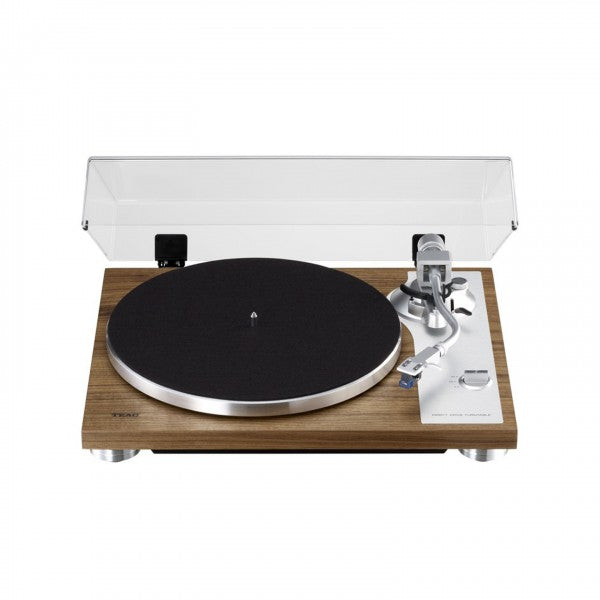

Teac TN-4D-SE Direct Drive 2-Speed Analog Turntable Walnut
Explore the Teac TN-4D-SE, which boasts a sleek brushless DC motor, knife-edge pivot-tone arm bearings, precision adjustments, and a pre-installed Oyster cartridge. This turntable offers superior sound quality, speed stability, and versatility with its built-in PHONO EQ amplifier.
A Unique Direct-Drive Turntable
The Teac TN-4D-SE introduces an exclusive, sleek brushless DC motor, ensuring unparalleled crystal-locked speed accuracy. This sophisticated feature, regulated by a computer-controlled feedback circuit, results in remarkably low wow-and-flutter levels—particularly impressive for a direct-drive turntable with such a stylish, low-profile design.
Unrivaled Tonearm Innovation in Collaboration with SAEC Corporation

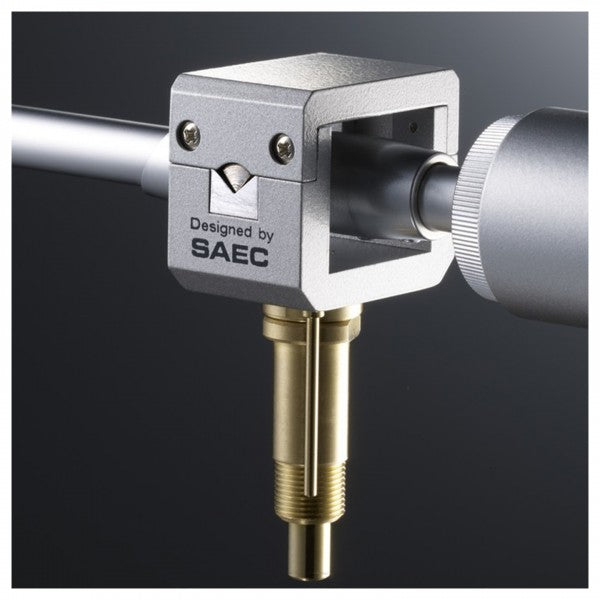

Collaborating with the renowned SAEC Corporation, this turntable's tonearm employs a groundbreaking knife-edge, pivot-point bearing. Unlike conventional bearings, this design enhances dynamic sound delivery and resolution by utilizing fine vertical movements. Additionally, the S-shaped tonearm accommodates universal headshell fitting, enabling seamless cartridge/headshell swapping and supporting diverse cartridge weights from 14 - 23g / 0.5 - 0.8 oz.
Precision Adjustments for Optimal Sound Performance
Experience precise stylus-pressure adjustment and anti-skating mechanism integrated into the tonearm, ensuring optimal sound performance with a counterweight feature.
Exceptional Cartridge Quality: Pre-installed Oyster Cartridge by SUMIKO
The Teac TN-4D-SE includes the esteemed Oyster MM cartridge by SUMIKO, renowned for its powerful and insightful performance across various music genres.
Built-in PHONO EQ Amplifier for Seamless Connectivity
Equipped with a built-in PHONO EQ amplifier, easily connect the turntable to your existing hi-fi system's line-level inputs. The NJM8080 IC from New Japan Radio Corporation ensures signal amplification to LINE-level strength without compromising quality.
Enhanced Stability and Shock Absorption
The die-cast aluminum platter, complementing the newly-developed motor, enhances speed stability. The turntable's insulating feet, comprising machined aluminum shells with rubber cushions fixed to the high-density MDF plinth, significantly reduce acoustic feedback with superior shock absorption.
Versatile Speed Options with Quality Engineering
Supporting 33-⅓ and 45 rpm speeds for LP and EP records, the TN-4D-SE showcases quality engineering even in the construction of the rotary control for start-up/speed selection, crafted from machined aluminum.
Discover the Teac TN-4D-SE for an exceptional direct-drive turntable experience, combining innovation, precision, and versatility for audiophiles and music enthusiasts alike.
Main Features:
- Direct-drive analog turntable
- Crystal-locked speed stability, thanks to a new brushless DC motor with feedback control
- Die-cast aluminium platter
- Knife-edge, pivot-point tonearm base, designed by high-end tonearm manufacturer SAEC
- Multi-layer piano black or natural walnut veneer finish
- Built-in PHONO EQ amplifier for high-quality sound (PHONO/LINE switchable)
- Audiophile-grade NJM8080 op-amp used in PHONO EQ stage
- 2-speed drive offering 33-⅓ and 45 rpm
- Gold-plated oxidation-resistant output connectors
- Oyster MM cartridge by SUMIKO
- Shock-absorbing insulating feet
- GND terminal
- RoHS compliant
*This product does not have a USB digital output.
Specifications:
Turntable section:
- Type: Direct Drive
- Motor: Brush-less DC Motor
- Rotation Speeds: 33-⅓ rpm, 45 rpm
- Wow-and-Flutters: 0.1%
- S/N Ratio: 67dB or higher (A-weighted, 20kHz LPF)
- Turntable (Platter): Material - Aluminium Die-cast, Diameter - 30cm
Tone-arm section
- Type: S-shaped, Static-balanced
- Effective Length: 223mm
- Needle Pressure Range: 0g to 5.0g
- Compatible Cartridge Weight: 3.0g to 12.0g, 14g to 23g (including Head-shell)
Head-shell and Cartridge sections
- Type: MM-type (SUMIKO Oyster factory installed)
- Output Voltage: 4.0mV (1kHz)
- Needle Pressure: 1.5 to 2.5g (appropriate value: 2.3g)
- Weight: 5.3g
- Head-shell weight: 11g (including nuts, screws, and wires)
- Compatible Stylus: Styluses for SUMIKO Oyster
Analog Outputs
- Connector: RCA Pin jack × 1 pair (PHONO/LINE switchable)
- Output Voltage: PHONO 4.0mV (1kHz), LINE 224mV (–13dBV)
Other
- Operating Power: AC 100 to 240V, 50/60Hz
- Power Consumption: 2W
- Standby Power: 0.5W or less
- Overall Dimensions (W×H×D): 420 × 117 × 356 mm / 16.5" × 4.6" × 14.0"
- Weight: Approx. 6.1kg / 13.5 lbs.
- Included Accessories: Felt Mat, EP Adapter, Counter Weight, Head-shell (SUMIKO Oyster installed), Platter, Dust Cover, Hinges × 2, RCA Audio cable with GND terminal, AC Adapter (GPE036W-24015), Owner's Manual (including Warranty Card)
