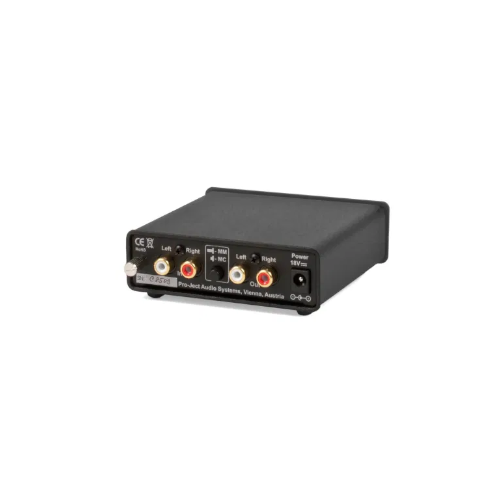

Pro Ject Phono Box MM and MC preamp with line output Grey
Pro Ject Phono Box MM and MC preamp with line output Grey
Couldn't load pickup availability
Phono Box: Best buy classic for pure vinyl listening pleasure!
Today there aren't many amplifiers that have a specific phono cartridge input. Phono Box is an ideal phono preamplifier for these HiFi systems and accepts both MM and MC cartridges. The analogue output of Phono Box can simply be connected to a line-input (AUX,…) of your amplifier.
Features
Preamplifier for MM or MC with switch on rear panel
Best buy classic
DC power supply (< 1 watt standby power)
Precise RIAA equalisation
Low noise ICs
Output stage with ultra-low impedance
Gold-plated RCA sockets
Small size for installation near recordplayer
Faceplate available in black and silver
Technical Specifications
Input impedance, MM 47 kohms/120 pF
Input impedance, MC 100 ohms / 120 pF
Gain, MM 40 dB
Output voltage typically 300 mV/1 kHz at 3 mV/1 kHz (MM input)
Gain, MC 60 dB
Output voltage typically 300 mV / 1 kHz at 0,3mV/1 kHz (MC input)
Max. output 9.5V (1kHz)
Noise floor, MM 94 dBA
Noise floor, MC 75 dBA
THD, MM 0,01%
THD, MC 0,05%
RIAA-equalisation curve accuracy 20 Hz - 20 kHz / max. 0,5 dB
Outboard power supply 18V / 200 mA DC, suitable for your country's mains supply
Standby power consumption < 1 watts
Dimensions W x H x D 103 x 36 x 104 (115 mm with sockets)
Weight 570 g
