Monitor Audio SB-3 Passive Soundbar in Black

Monitor Audio SB-3 Passive Soundbar in Black

$567.92 USD
$946.53 USD $567.92 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Colour

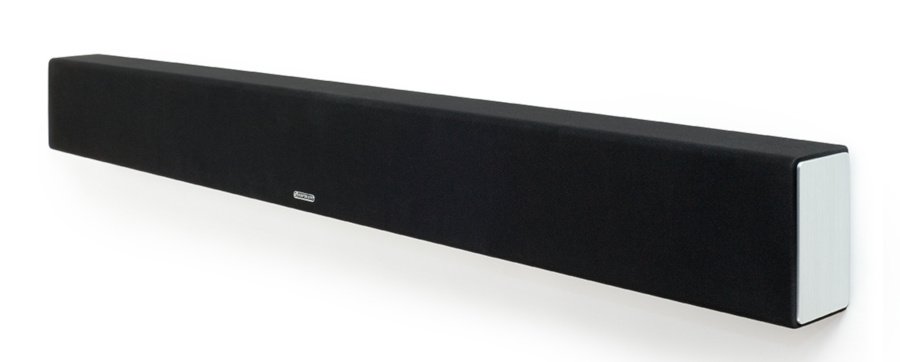

Monitor Audio SB-3 Passive Soundbar in Black

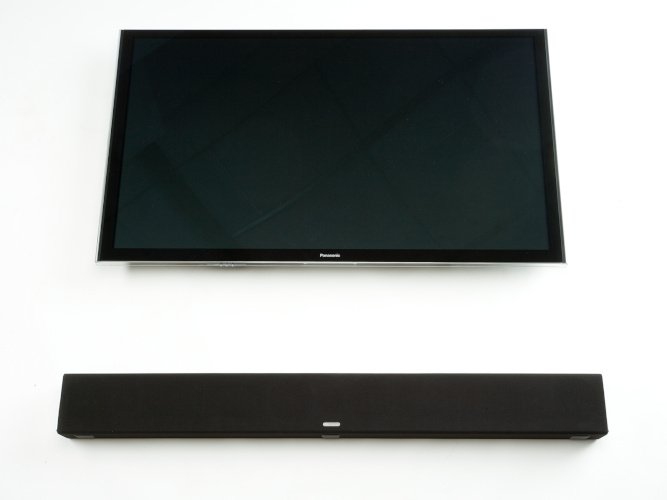

Monitor Audio SB3 Passive Soundbar, this compact SB3 is engineered to be integrated with above 60 inch TVs, featuring three separate driver arrays for left, right and centre channels in a single cabinet.



With its twin C-CAM bass drivers, twin ABRs and a single C-CAM tweeter in the centre section to provide the SB3 with acoustic output and power handling for critical centre channel reproduction.



The SB-3 can be partnered with a Monitor Aduio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TVs sound system.



Features



Bass/Mid driver per channel C-CAM

C-CAM gold dome tweeters per channel

Bass Reflex per channel

Three separate driver arrays for left, centre, right channels in a single cabinet

Integrated silicon feet provide a secure cabinet top alternative

Optional wall bracket


Specification
Frequency Response (-3 dB)
All Channels: 80 Hz – 30 kHz

Sensitivity (1W@1M)
Left and Right Channels: 84 dB
Centre Channel: 87 dB

Nominal Impedance
8 ohms

Power Handling (RMS)
Left and Right Channels: 40 W
Centre Channel: 80 W

System Power Handling (RMS)
All Channels: 100 (High pass filter set to 100 Hz)

Recommended Amplifier Requirements
All Channels: 30 — 100 W

Crossover Frequency
All Channels: 80 — 120 Hz

Maximum SPL
104 (108.8 all channels driven) dBa

Bass Alignment
Left and Right Channels: 2 x Auxiliary Bass Reflex (ABR) Loading
Centre Channel: 2 x Auxiliary Bass Reflex (ABR) Loading

Drive Unit Complement
Left and Right Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 2 x 1" (25 mm) C-CAM Gold Dome tweeter
Centre Channel: Left and Right Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 1 x 1" (25 mm) C-CAM Gold Dome tweeter

Cabinet Dimensions: (H x W x D) (Including Feet)
147 x 1307 x 93 mm (513/16 x 517/16 x 311/16")

External Dimensions (Including Bracket (H x W x D))
145 x 1307 x 100 mm (511/16 x 517/16 x 315/16")

Bracket
BSB

Weight
9.1 kg (20 lb)
