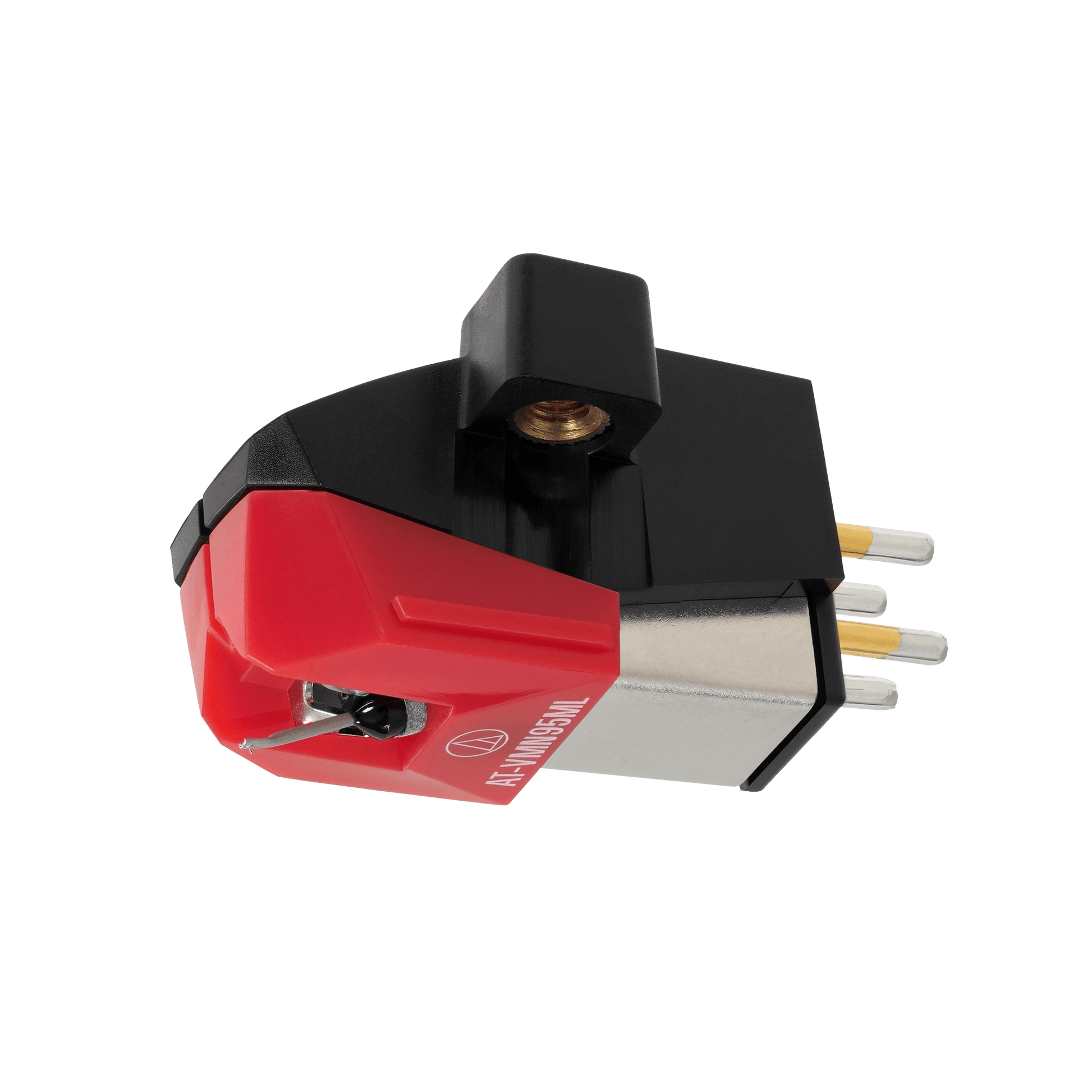

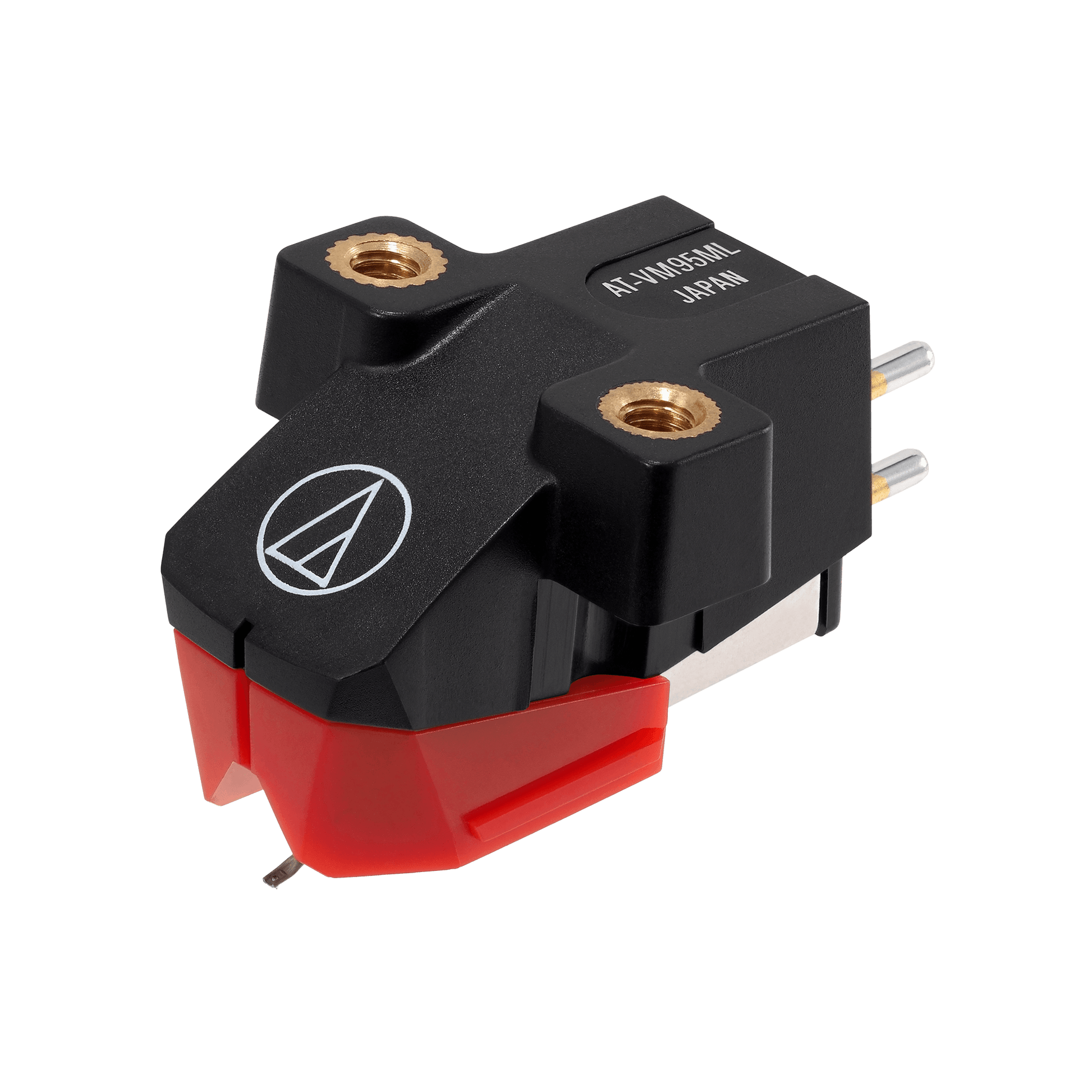

Audio-Technica AT-VM95ML – VM95 Series Microlinear Stereo Cartridge

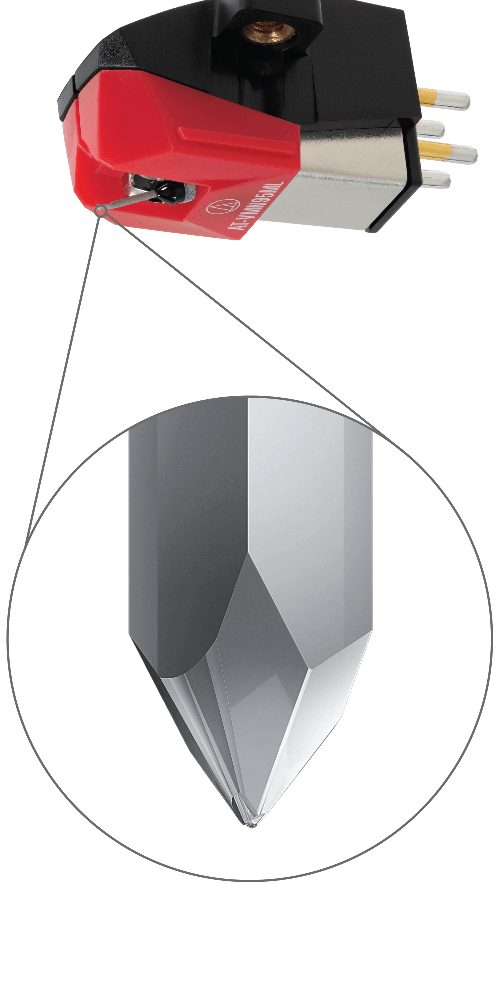

The Audio-Technica AT-VM95ML features a Nude Microlinear diamond stylus, engineered to deliver exceptional tracking and outstanding detail retrieval. The Microlinear profile offers superior contact with record grooves, dramatically reducing inner groove distortion and maintaining clarity right to the end of each side. This stylus shape also offers significantly extended longevity — lasting up to twice as long as many standard stylus profiles.
With an aluminium cantilever and a 3.5mV output voltage, the AT-VM95ML provides precise tracking, excellent channel separation and a clean, natural sonic presentation from 20Hz up to 25kHz. As part of the VM95 Series cartridge family, the body is compatible with every VM95 stylus option, allowing easy replacement or future upgrades without replacing the cartridge itself.
The VM95 platform is built for long-term value — simply change the stylus when worn or switch to a different profile to tailor your listening experience. Whether you want to preserve your record collection or reveal greater musical nuance, the AT-VM95ML is an ideal choice for vinyl enthusiasts who want high resolution, low distortion and maximum groove accuracy in every play.
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 25,000 Hz |
| Channel Separation | 23 dB (1 kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8 to 2.2g (2.0g standard) |
| Stylus Construction | Nude Square Shank |
| Recommended Load Impedance | 47,000 Ω |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| DC Resistance | 485 Ω |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 3.5 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Stylus Shape | Microlinear |
| Cantilever | Aluminium Pipe |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 10 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | 1/2” centres |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 x 18.9 x 28.3 ( H x W x D mm) |

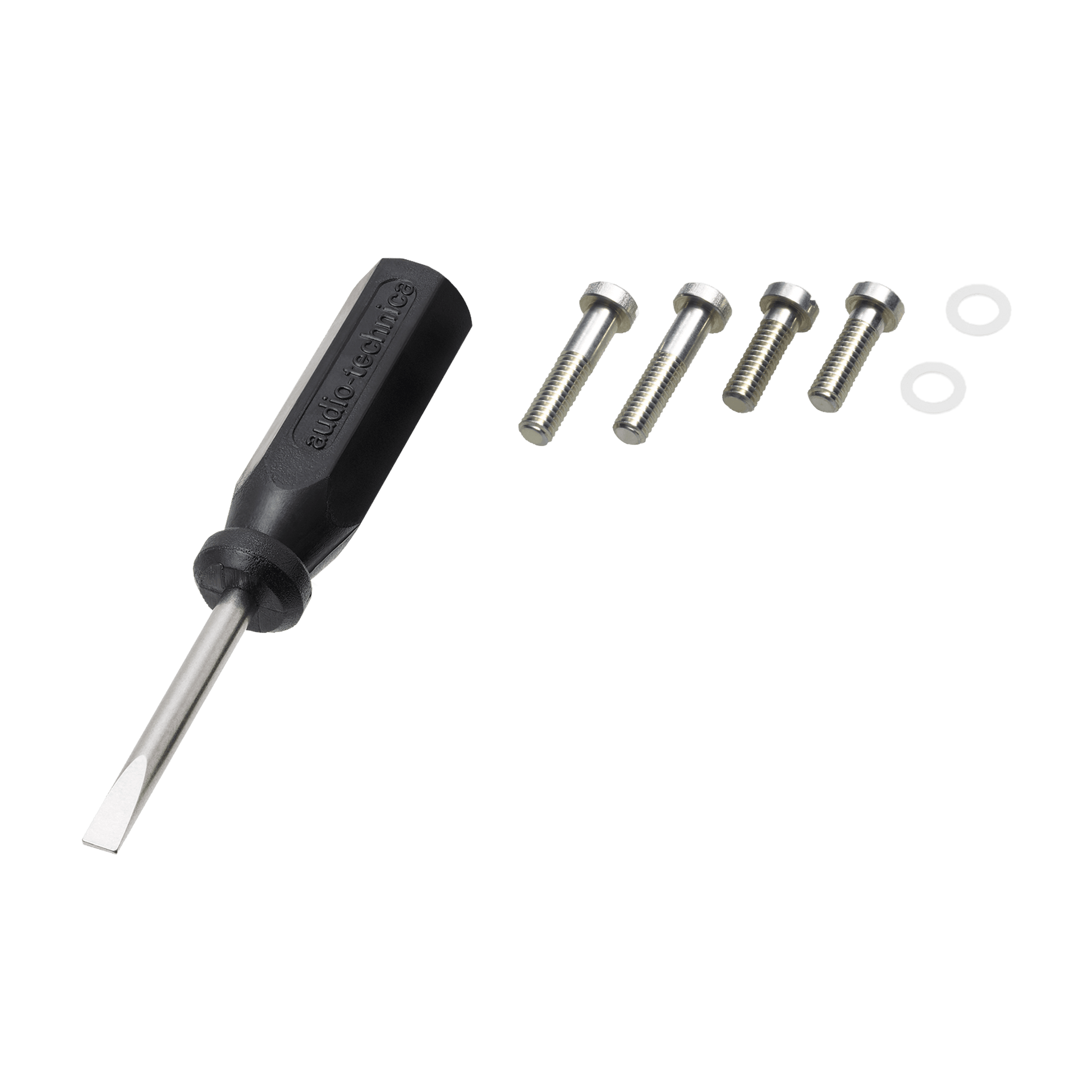

| Accessories Included | Two 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriver |
| Model | AT-VM95ML |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | AT-VMN95ML |
| Stylus Size | 2.2 x 0.12 mil |
| Type | VM Stereo Dual Magnet |
| Wire Used for Coil | T.P. Copper |
