Audio Technica AT-VM95EN VM95 Series Elliptical Nude Stereo Cartridge
Audio Technica AT-VM95EN VM95 Series Elliptical Nude Stereo Cartridge
Couldn't load pickup availability

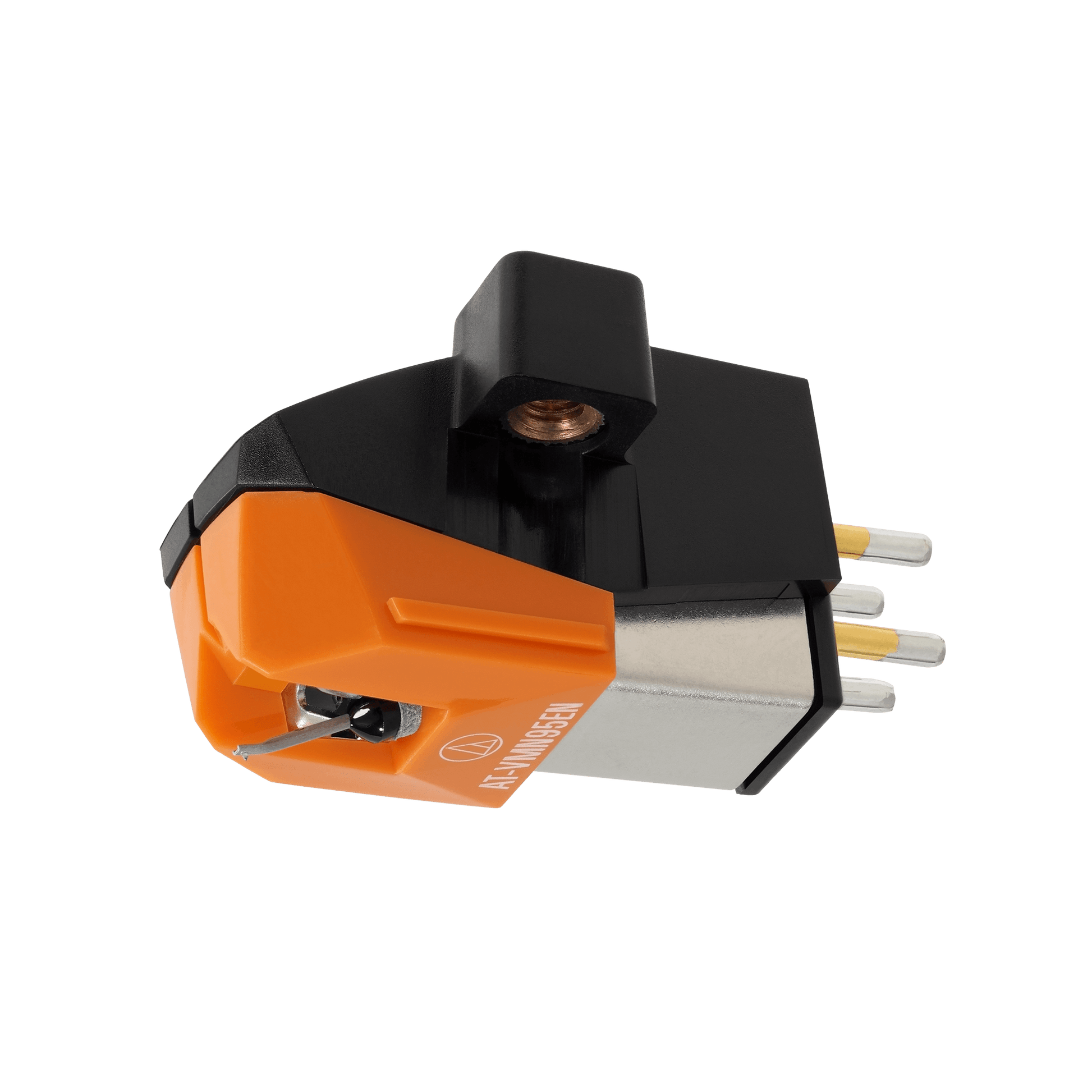

Audio-Technica AT-VM95EN – VM95 Series Elliptical Nude Stereo Cartridge

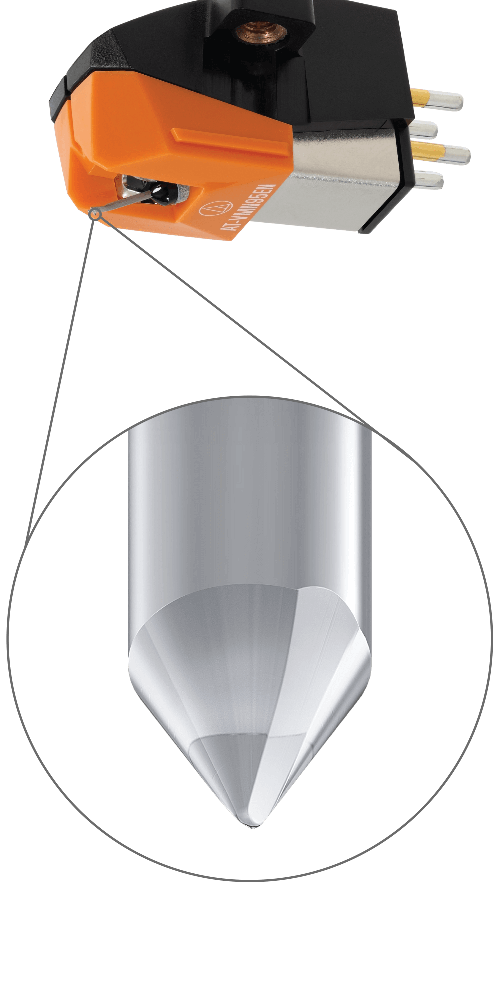

The AT-VM95EN is equipped with a Nude Elliptical diamond stylus — a one-piece diamond design that offers lighter mass and improved rigidity compared to bonded alternatives. This refined stylus construction enables more accurate groove tracking, delivering superior clarity in high frequencies and faster, more precise transient response.
Built around an aluminium cantilever and a 3.5mV output voltage, the AT-VM95EN ensures smooth, detailed playback from 20Hz to 23kHz. It is also fully compatible with all VM95 Series stylus assemblies, allowing you to replace or upgrade styli easily without needing a new cartridge body.
With the VM95 Series platform, longevity and flexibility are part of the design. Simply replace the stylus when it wears out, or explore different stylus profiles within the VM95 range to elevate your system performance. The AT-VM95EN is the ideal choice for vinyl listeners who want enhanced resolution, improved high-frequency accuracy, and a step-up audiophile experience from an elliptical stylus.
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 23,000 Hz |
| Channel Separation | 22 dB (1 kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8 to 2.2g (2.0g standard) |
| Stylus Construction | Nude Round Shank |
| Recommended Load Impedance | 47,000 Ω |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| DC Resistance | 485 Ω |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 3.5 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 2.0 dB (1 kHz) |
| Stylus Shape | Elliptical |
| Cantilever | Aluminium Pipe |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 7 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | 1/2” centres |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 x 18.9 x 28.3 ( H x W x D mm) |

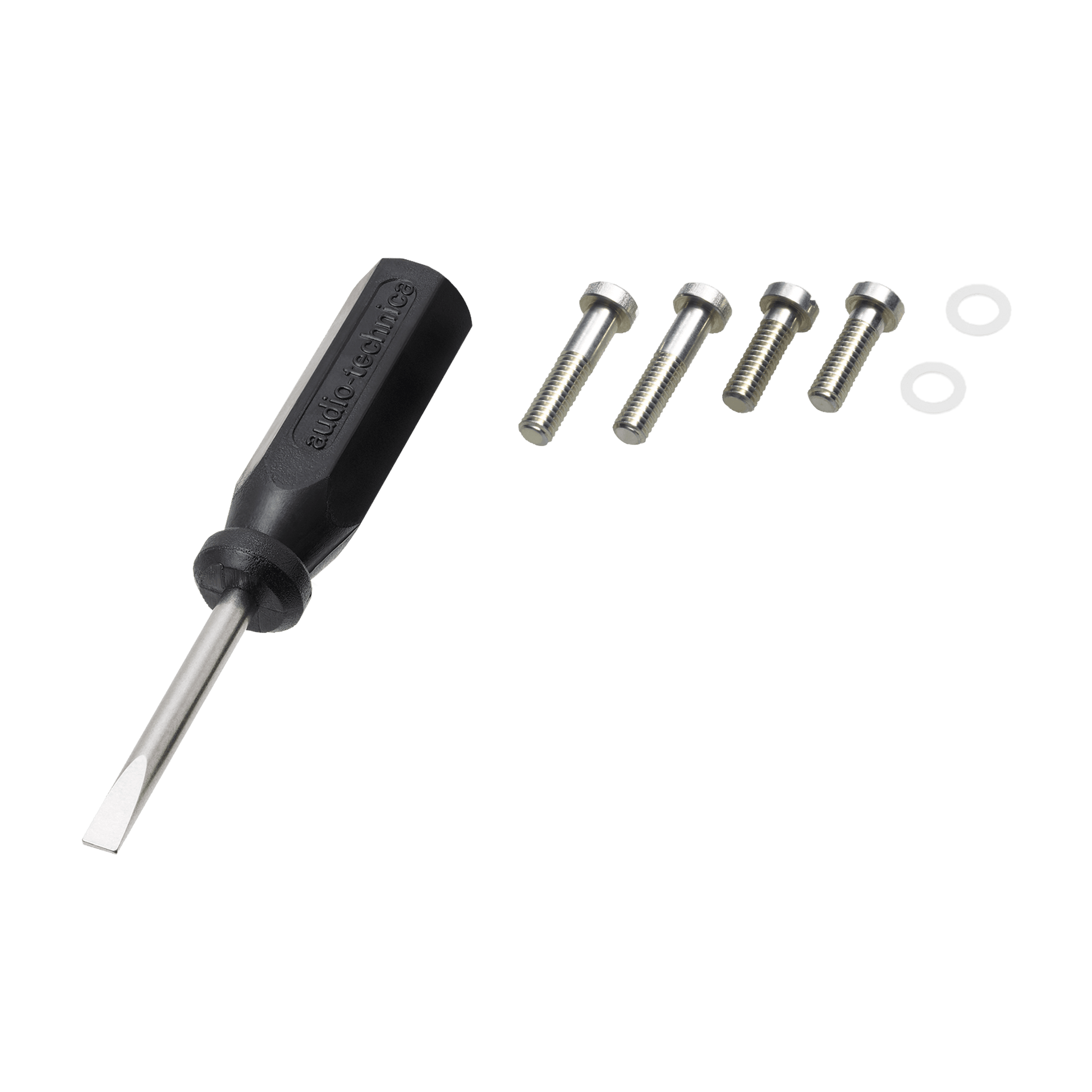

| Accessories Included | Two 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriver |
| Model | AT-VM95EN |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | AT-VMN95EN |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Stereo Dual Magnet |
| Wire Used for Coil | T.P. Copper |
Audio, Technica, AT-VM95EN, VM95, Series, Elliptical, Nude, Stereo, Cartridge, Audio Technica, AT-VM95EN, VM95 Series, Elliptical, Nude Stereo Cartridge, ATVM95EN, ATV, M95, EN, ATVM, 95EN
